Birmingham's 4D F-MeshLDM Generates Beating Virtual Hearts for Drug-Free Trials
4D F-MeshLDM uses Fourier-structured latent diffusion to generate cycle-consistent beating heart meshes, enabling controllable virtual patient cohorts for medical device testing.
- 4D F-MeshLDM generates full 3D+t cardiac mesh sequences (beating hearts) conditioned on clinical covariates like age, sex, and body size.
- Motion is encoded as Fourier coefficient tokens in latent space, making cycle consistency (heart returns to start position) a structural guarantee, not a training objective.
- Trained on 5,000 UK Biobank subjects, the model outperforms baselines on vFID (anatomical fidelity) and achieves near-zero cycle closure error.
- Generated cohorts accurately preserve clinical functional indices like ejection fraction, making them suitable as inputs for in-silico medical device trials.
- Key use cases: cardiac device testing, subpopulation cohort generation, electromechanical simulation inputs, and ML data augmentation.

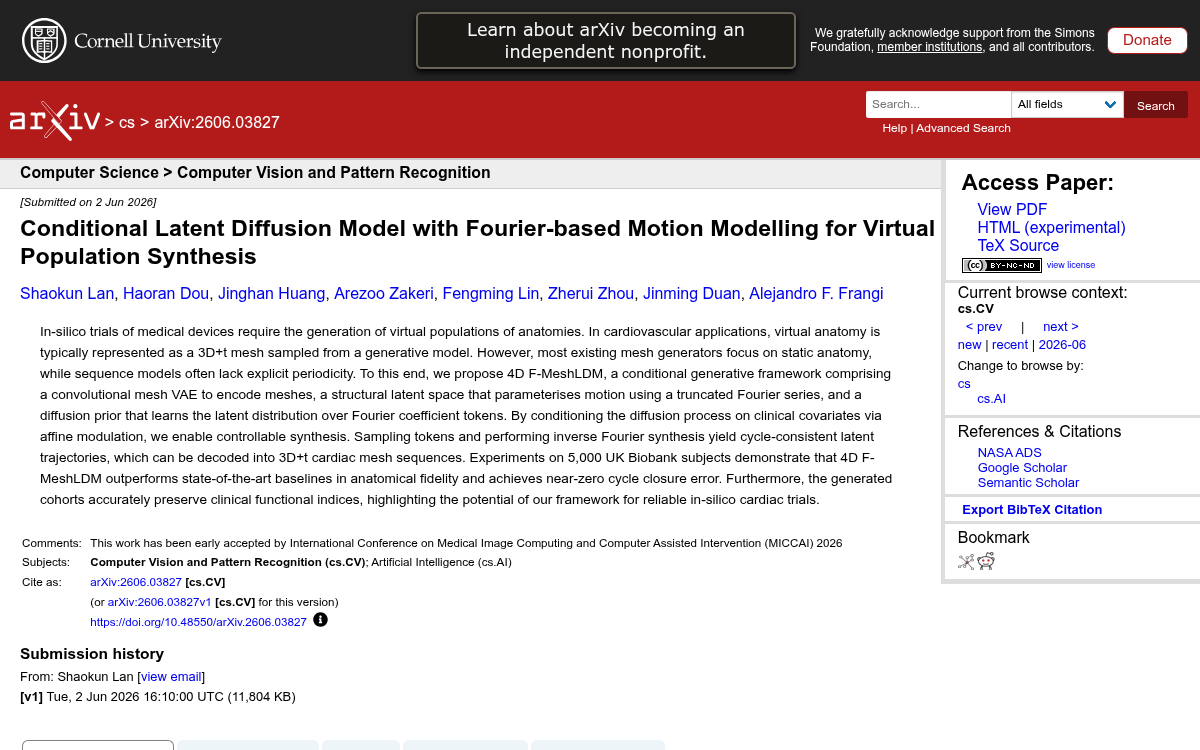

- No public code or model weights released; paper available as a preprint on arXiv.
Testing a new cardiac device on real patients is expensive, slow, and carries risk. The alternative -- running the trial on thousands of simulated patients -- is gaining serious regulatory traction. The FDA's 2021 guidance on "Reporting of Computational Modeling Studies in Medical Device Submissions" formally recognized in silico evidence as acceptable for regulatory decision-making. The catch? You need a generator that can produce anatomically realistic, beating hearts at scale. A new paper from researchers at the University of Birmingham and collaborators proposes 4D F-MeshLDM, a conditional latent diffusion model that does exactly that -- and does it with an explicit mathematical guarantee that the heart keeps beating in a loop.
Why this problem is harder than it looks
In-silico trials have gained significant traction as a powerful approach to evaluate the effects of drugs, clinical interventions, and medical devices, while minimizing patient risks and reducing reliance on animal testing. But building those trials requires a supply of diverse, realistic virtual patients. Each virtual patient must be described by their anatomy with a volumetric mesh, along with electrophysiological and mechanical dynamics. For the heart specifically, that means you need a 3D mesh that also moves -- contracting and relaxing through a full cardiac cycle, frame by frame.
Most existing generative models handle either space or time, but not both well. Static mesh generators produce a single anatomical snapshot. Sequence models can produce motion, but they typically treat time as an arbitrary dimension, with no built-in constraint that the heart returns to the same position at the end of each beat. The motion of the heart follows a periodic nonlinear pattern modulated by underlying molecular, electrophysiological and biophysical processes. Ignoring that periodicity means generated sequences can drift -- the heart at frame 50 looks nothing like the heart at frame 1, which is physically impossible and useless for simulation.
The Fourier trick at the core of the model
The key innovation in 4D F-MeshLDM is how it represents cardiac motion in latent space. Rather than encoding each time frame independently, the model parameterizes the entire motion trajectory as a
